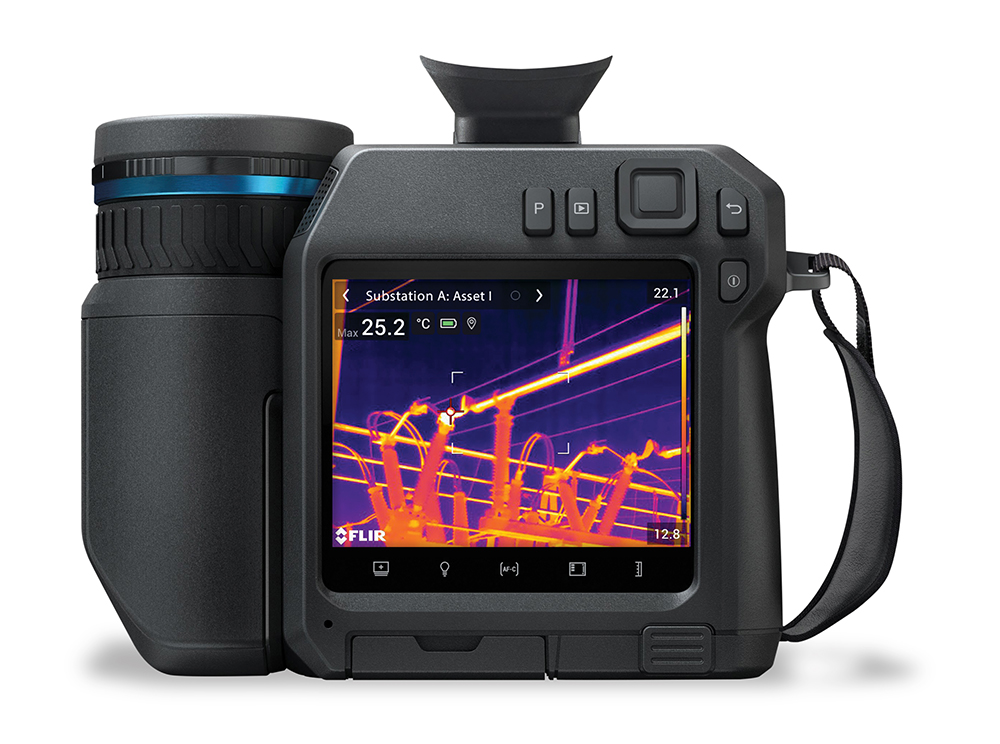

Professional thermal imaging camera for industrial inspection and predictive maintenance.
| IR Resolution | 640 × 480 pixels |
|---|---|
| UltraMax | Yes |
| Thermal Sensitivity/NETD | <30 mK, 42° @ +30°C (+86°F) | <40 mK, 24° @ +30°C (+86°F) | <50 mK, 14° @ +30°C (+86°F) |
| Field Of View (FOV) | 42° × 32° | 24° × 18° | 14° × 10° |
| Minimum Focus Distance | 0.15 m (0.49 ft.), 42° | 0.15 m (0.49 ft.), 24° | 1.0 m (3.28 ft.), 14° | Macro mode 50 μm as option, 24° |
| Minimum Focus Distance With MSX | 0.65 m (2.13 ft.), 42° | 0.5 m (1.64 ft.), 24° | 1.0 m (3.28 ft.), 14° |
| Focal Length | 10 mm (0.39 in.), 42° | 17 mm (0.67 in.), 24° | 29 mm (1.41 in.), 14° |
| Spatial Resolution (IFOV) | 1.20 mrad/pixel, 42° | 0.66 mrad/pixel, 24° | 0.38 mrad/pixel, 14° |
| Available Extra Lenses | Dual FOV 24°/14° (service calibration required) |
| Lens Identification | Automatic |
| F-Number | 1.1, 42° | 1.3, 24° | 1.5, 14° |
| Image Frequency | 30 Hz |
| Focus | Continuous LDM | One-shot LDM | One-shot contrast | Manual |
| Field Of View Match | Yes |
| Digital Zoom | 1–8× continuous |
| Detector Type | Uncooled microbolometer/7.5–14 μm |
| Detector Pitch | 12 μm |
| Temperature Range | –40 to 120°C (–40 to 248°F) | 0 to 650°C (32 to 1202°F) | 300 to 2000°C (572 to 3632°F) |
